Quantile Mapping

Quantile Mapping is the current bias-correction method implemented in AID-BC.

It is used to reduce systematic distributional differences between CMIP6 climate model outputs and a reference dataset. In the current workflow, ERA5 is used as the reference dataset, and CMIP6 data are corrected so that their statistical distribution becomes closer to the ERA5 distribution over a chosen training period.

The corrected CMIP6 fields can then be used as large-scale inputs for AI-based downscaling experiments.

Purpose

Climate model outputs often contain systematic biases compared with reference datasets or reanalysis products. These biases can affect downstream workflows, especially when climate variables are used as inputs to AI-based downscaling models.

Quantile Mapping aims to correct these biases by matching the distribution of a biased model variable to the distribution of a reference variable.

In AID-BC, this method is used to learn a statistical relationship between CMIP6 and ERA5 over a training period, then apply this relationship to a target CMIP6 application period.

General principle

Quantile Mapping corrects a value by comparing its position in the distribution of the biased model data and mapping it to the corresponding value in the reference distribution.

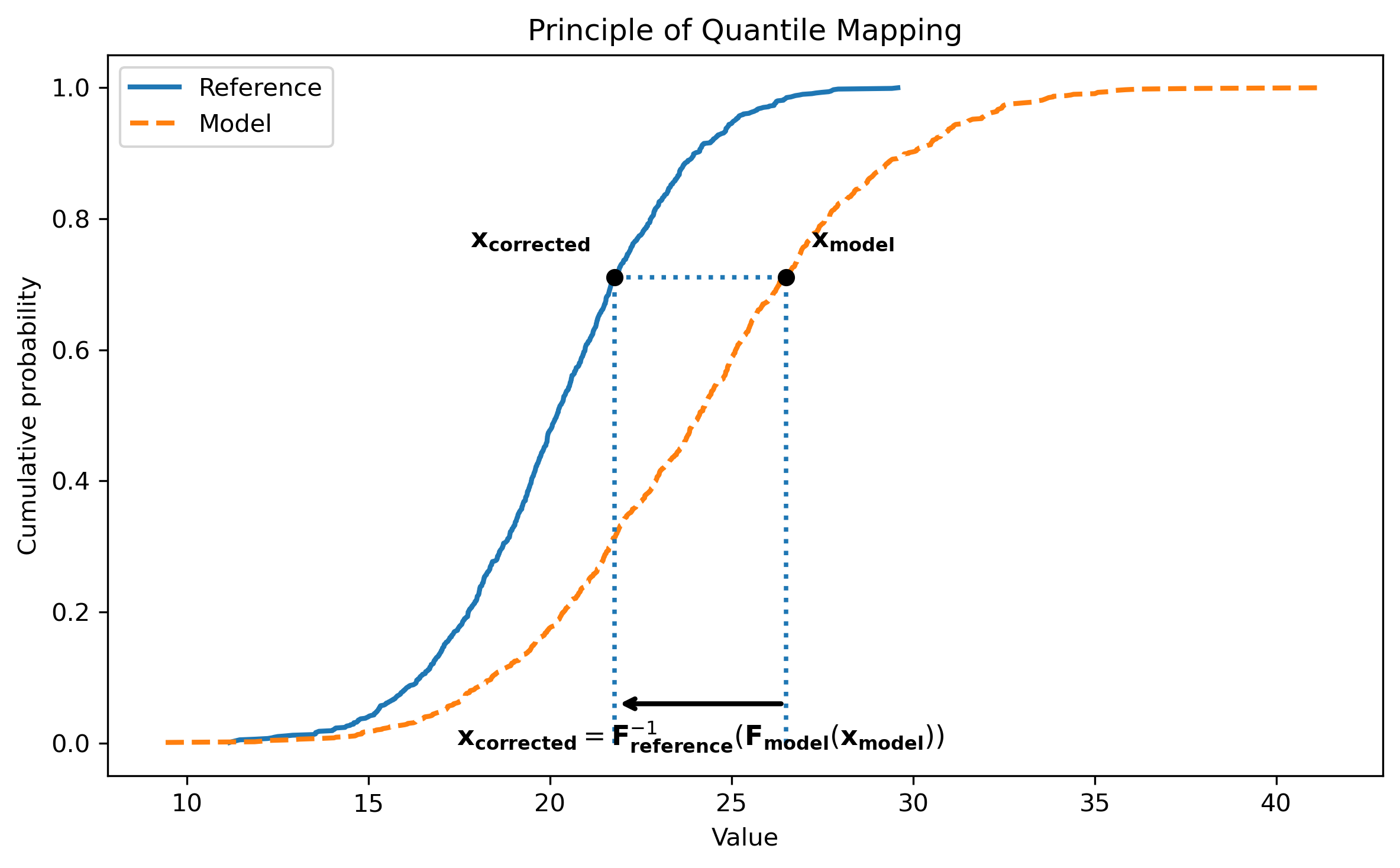

The principle is illustrated in the figure below using a simplified example with a model distribution and a reference distribution.

_images/quantile_mapping_principle.png

Illustration of the Quantile Mapping principle. The model value is first converted into a cumulative probability using the model CDF. The corrected value is then obtained from the reference CDF at the same cumulative probability.

In this example, the value to be corrected is denoted by x_model. Its position in the model distribution is first identified through the model cumulative distribution function:

\[q = F_{model}(x_{model})\]

where q is the quantile associated with x_model. The same quantile is then used in the reference distribution to obtain the corrected value:

\[x_{corrected} = F^{-1}_{reference}(q)\]

Combining these two steps gives:

\[x_{corrected} = F^{-1}_{reference}(F_{model}(x_{model}))\]

This means that the corrected value keeps the rank information from the model distribution while adopting the value scale of the reference distribution.

Applied to the CMIP6–ERA5 bias-correction framework, the model distribution is the CMIP6 training distribution, and the reference distribution is the ERA5 training distribution. For a given CMIP6 value, the method first determines the quantile of that value within the CMIP6 training distribution. It then finds the ERA5 value corresponding to the same quantile.

Conceptually, the correction can therefore be written as:

\[x_{corrected} = F^{-1}_{ERA5}(F_{CMIP6}(x_{CMIP6}))\]

where:

  • x_CMIP6 is the original CMIP6 value,

  • F_CMIP6 is the cumulative distribution function of the CMIP6 training data,

  • F^{-1}_ERA5 is the inverse cumulative distribution function of the ERA5 training data,

  • x_corrected is the bias-corrected CMIP6 value.

Therefore, the corrected CMIP6 value preserves its relative rank in the CMIP6 distribution while being expressed on the ERA5 reference scale.

Training and application periods

The Quantile Mapping workflow separates the data into two periods.

1. Training period

The training period is used to estimate the statistical relationship between CMIP6 and ERA5.

During this step, AID-BC uses:

  • ERA5 reference data for the training period,

  • preprocessed CMIP6 data for the same training period.

Both datasets must be defined on the same latitude-longitude grid. In the current workflow, this is achieved during preprocessing, where CMIP6 data are interpolated onto the ERA5 grid and stored as Zarr files.

2. Application period

The application period is the period to which the learned correction is applied.

During this step, AID-BC uses preprocessed CMIP6 application data and applies the Quantile Mapping transformation learned from the training period.

The application period can correspond to:

  • a historical period not used during training,

  • a validation or test period,

  • a future CMIP6 simulation period.

The corrected output is saved as a NetCDF file.

Inputs and outputs

The Quantile Mapping step uses three main inputs:

  • ERA5 training data stored as NetCDF files,

  • preprocessed CMIP6 training data stored as Zarr files,

  • preprocessed CMIP6 application data stored as Zarr files.

The ERA5 data provide the reference distribution. The CMIP6 training data provide the biased model distribution over the same period. The CMIP6 application data are the values to be corrected.

The output is a corrected CMIP6 field saved as a NetCDF file. This corrected field is intended to be used as input for downstream AI-based downscaling experiments.

Current implementation

The current implementation uses univariate Quantile Mapping.

This means that each variable is corrected independently. The correction is based on the distribution of a single variable at a time and does not explicitly correct dependencies between several variables.

For example, temperature and wind components are corrected independently when they are included in the workflow.

This approach is useful for reducing marginal distributional biases, but it does not guarantee that physical or statistical dependencies between variables are fully preserved.

Limitations

Although Quantile Mapping is widely used and effective for correcting distributional biases, it has some limitations.

In its current univariate form, Quantile Mapping:

  • corrects each variable independently,

  • does not explicitly preserve multivariate dependencies.

These limitations motivate future extensions of AID-BC toward multivariate bias-correction methods.
